Oxford Advance Compact Portable Hoist

Oxford Advance Compact Portable Hoist

or pay using NDIS funds

The Oxford Gantry Hoist is a compact patient transfer aid helps care workers assist patients in a comfortable and easy manner. Whether transferring from a pressure care bed to the floor or vice versa, the Oxford advance transfer can help the process with minimal effort.

Categories: ,
Purchase this product now and earn 4,264 Reward Points!

$4,263.97 Includes GST

Categories: ,

Description

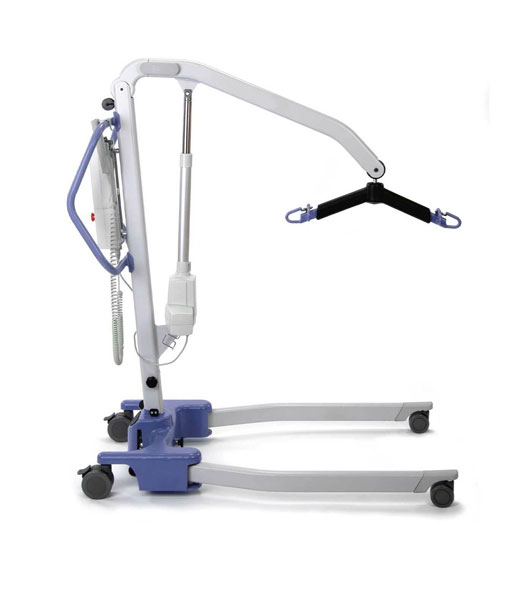

The Oxford Advance Folding Hoist is a portable mobile hoist with a compact design that helps care workers transfer patients in an easy way that provides a comfortable experience. The exceptionally designed tapered leg of the unit is reaches even the most difficult obstacles. This feature comes in handy for effective transfers when encountering bulky chairs, large commodes or large wheelchairs. This design also ensures that the patient is transferred safely and securely to the required location.

With a safe maximum weight of 155kg, this portable lifting hoist has a sturdy aluminium construction for efficient transfers. A push footpad reduces the force needed for a person to initiate movement, making it easier and safer for care workers. The compact triangular folding design makes it easy to store when not in use. It is suitable for a range of locations, whether at home or in residential aged care.

This is a great option for those who want a mobile patient lifting hoist that provides comfort and reliability – both for the user and the caregiver.

Mobility Caring recommends getting professional advice to ensure the hoist is used correctly and suits your needs.

Additional information

Brand

Invacare

Safe Working Load

155kgs

Total Unit Weight

31.7kgs

Folded Dimensions

Height 17.1 inches
Depth 46.4 inches
Width 21.6 inches

Width

550mm

Overall Weight

Approximately 29kg

Ground Clerance

30mm

Overall Height of Legs

115mm

Warranty

Full 2 year warranty

Features

  • Oversized handle for increased control and effective transfers
  • Patent pending push footpad reduces the force needed for a person to initiate movement
  • Compact design
  • Swan neck leg design accommodates large furniture
  • Patent pending triangular folding design allows the lift to securely stand unaided
  • No tools required to fold, creating efficiency for carers during transfers
  • All aluminium construction
  • Foot operated leg spreading mechanism requires no bending to operate
  • Safe maximum weight is 155 kg
  • Front 3 inch twin castors (7.5cm)
  • Rear braked 3.9 inch castors (10cm)
  • Supplied with battery and onboard charger
  • Tested to EN ISO 10535, the global standard for patient lift

Device dimensions for Oxford mobile patient lift:

  • Folded dimensions are 145cm x 111cm x 65cm
  • Maximum overall length is 130cm, minimum is 125cm
  • Maximum overall height 186cm, minimum is 136cm
  • Oxford gantry hoist width is 55cm
  • Spreader bar maximum height is 169cm
  • Minimum usable height is 39cm
  • Height at max hoist reach is 117cm
  • Reach at maximum height 65cm, minimum is 35cm
  • Maximum reach is 83.5cm (from centre of cradle/spreader bar to front of mast)
  • Turning radius is 142cm
  • Legs open – external width 108cm, internal width 100cm
  • Legs closed – external width 67cm, internal width 57cm
  • Overall height of legs is s11.5cm
  • Ground clearance is 3cm
  • Safe maximum weight is 155 kg
